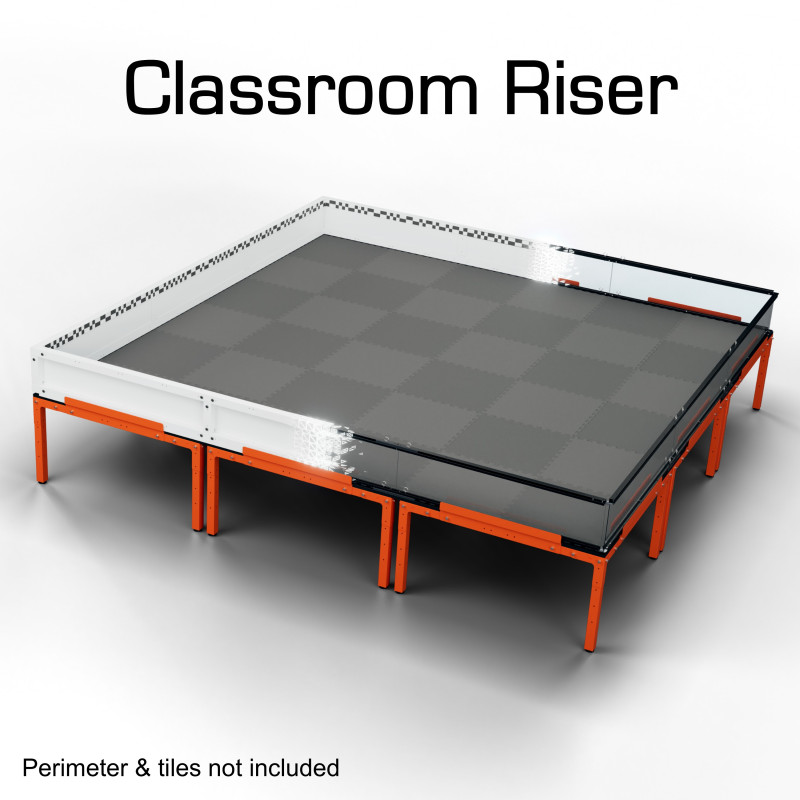

Classroom FTC or V5RC Field Riser, 24" Tall, 12'x12'
72-91
New product

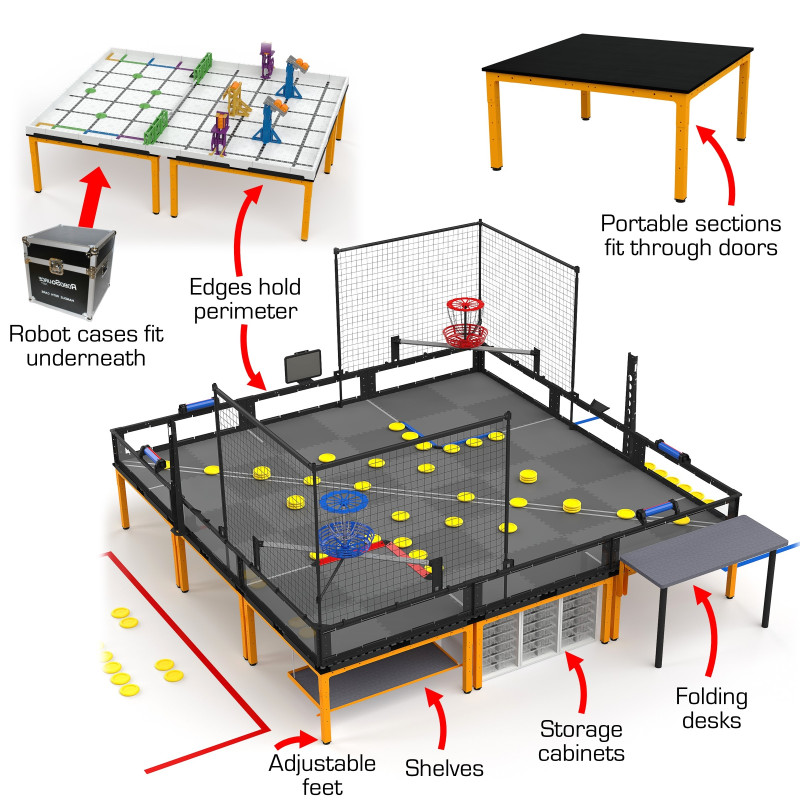

Elevate your VEX or FIRST Tech Challenge field by 24" to gain valuable storage space while creating a competition-like field setup to practice on. Install folding workbenches on the sides, shelves underneath, cabinets for Robosource's storage trays, store robot cases, and so much more.
- 2nd Generation upgrades: improved flanges better hold the perimeter & 100% steel leg construction for improved durability.
-
Strong & Durable: Welded & powder-coated steel frame with ¾” black wood top
-
Portable: Individual sections fit through doors
-
Sized to perfectly fit a 12 x 12 foot VRC or FTC field
-
Flanges to hold the perimeter face inwards for Andymark's FTC perimeter and VEX's older steel perimeter or face outwards for VEX's newer plastic perimeter
-
Quick & easy setup
-
Adjustable feet to accommodate uneven floors
In Stock
More info
Drawings and 3D CAD files are available for all storage furniture and field risers: Click here
Further Details
-
Includes 9 sections each measuring 4x4 feet, perimeter retention flanges, and all necessary hardware
-
Each 4x4 foot section weighs ~80lbs. Total riser weight is approximately 740lbs.
-
Weight limit of 200 pounds per section.
- VEX/FTC field perimeter, foam tiles, and game not included
Shipping Information
Due to the size of this item, it must be packed on a pallet and shipped by truck freight (LTL). Options are available for having the pallet delivered to your location or picking it up at a nearby freight terminal, which is the lowest cost option and may be the most convenient if you don't have a loading dock.
Assembly Information
When you first receive your field risers, you will need to attach the plywood to the welded frame using the included wood screws. After that, any subsequent setup or takedown consists of only the following steps:
-
Attach legs by screwing 4 bolts into pre-installed threaded inserts
-
Use adjustable feet to level platform
-
If multiple platforms are set up for a full field, place platforms next to each other and adjust feet to level each platform. Two bolts are then installed into threaded inserts at each interface between sections. These bolts are only to prevent platforms from separating and should not bear any weight. This is why each platform must be leveled before connecting to one another.
