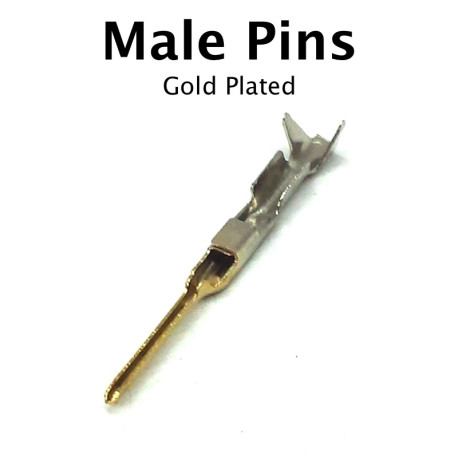

Male Crimp Pins, Gold Plated
54-11-P
New product
Replacement male pins to crimp onto cable to fix motor, sensor, or extension wires. Why throw out a good motor just because a pin broke off, now you can easily repair it with inexpensive parts from Robosource.net. See full description below for more repair information.
All of our crimp pins are gold plated (identical to VEX® pins) for higher durability: most pins aren't gold plated and not intended for being plugged/unplugged frequently.
Kits to repair a whole connector also available.
More info
Here's how to legally repair a damaged connector:
- Remove the current connector housing. By using a tiny screwdriver or utility knife, you can lift the little tabs holding each pin in and then slide the housing off. If you don't want to reuse the housing, you can just cut it with side cutters.
- Snip off the existing damaged pins right where the pins meet the wire.
- Strip off about 5mm of insulation on the end of each wire. Ensure that all the stripped sections are the same length.
- Crimp a pin onto each wire, paying attention that they are all in the same orientation as before. A crimping tool such as those sold on Robosource.net is recommended, however with some practice and care other simple tools can be used too.
- Slide a new or reused housing onto the new pins. Give it a light tug to make sure all the tabs are clicked in all the way.
Additional repair information including pictures and a video are coming soon.
